Device

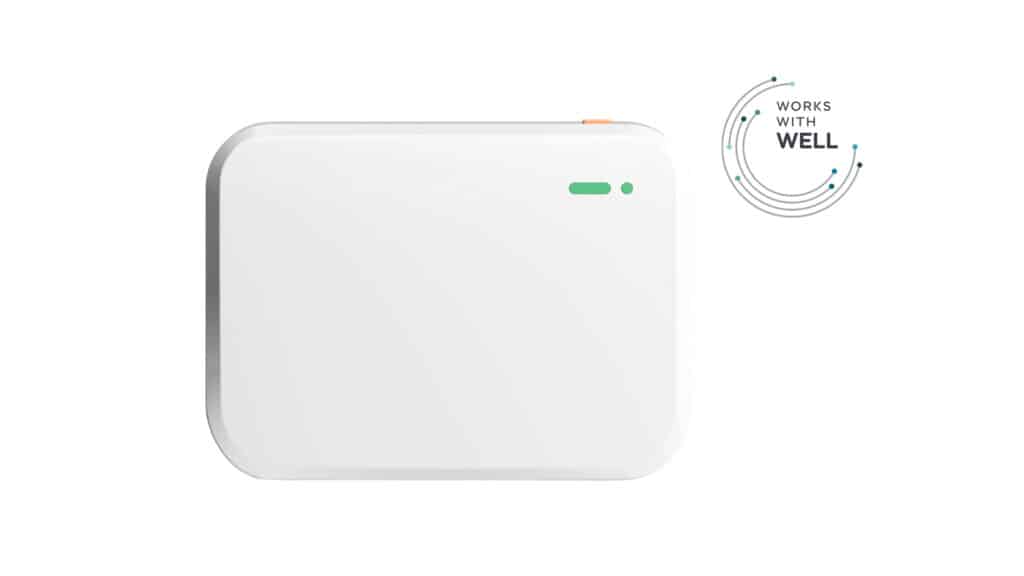

Airsight Pro Monitor

A high-precision IAQ Monitor with swappable sensor capsules and flexible connectivity options

Two capsule slots for interchangeable sensor and battery capsules

Built with Nomestic's modular design, the Airsight Pro Monitor has two capsule slots. Replace a sensor capsule in seconds, without the need for traditional calibration, or add a new sensor capsule to monitor additional parameters. Use a slot for a battery capsule to keep the monitor running on battery backup for up to 1 hour.

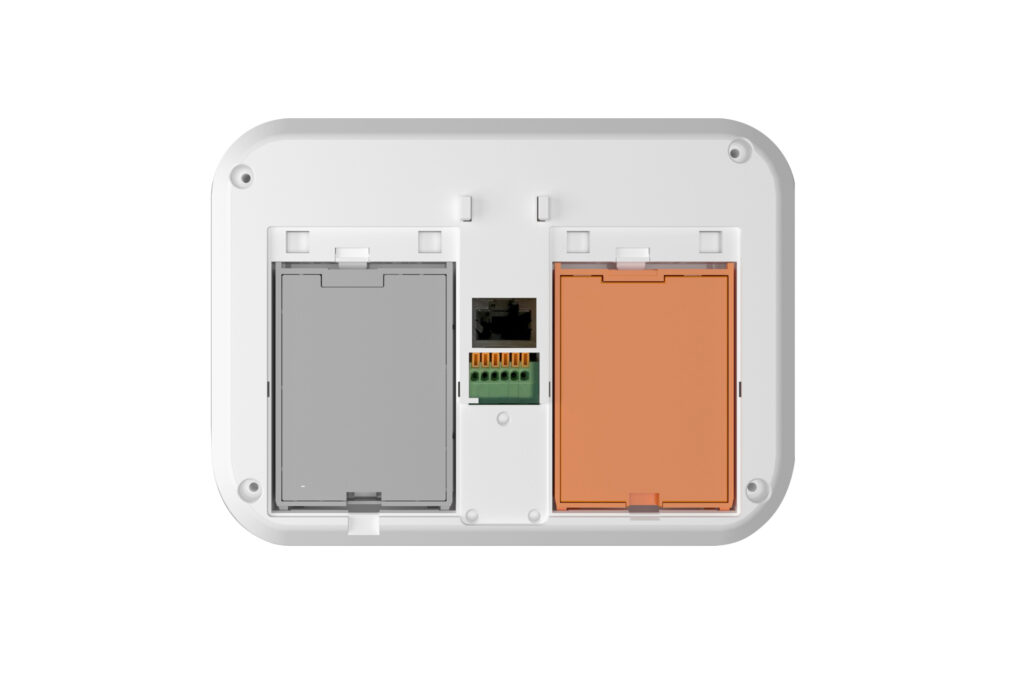

Back of the Airsight Pro Monitor with its two capsule slots

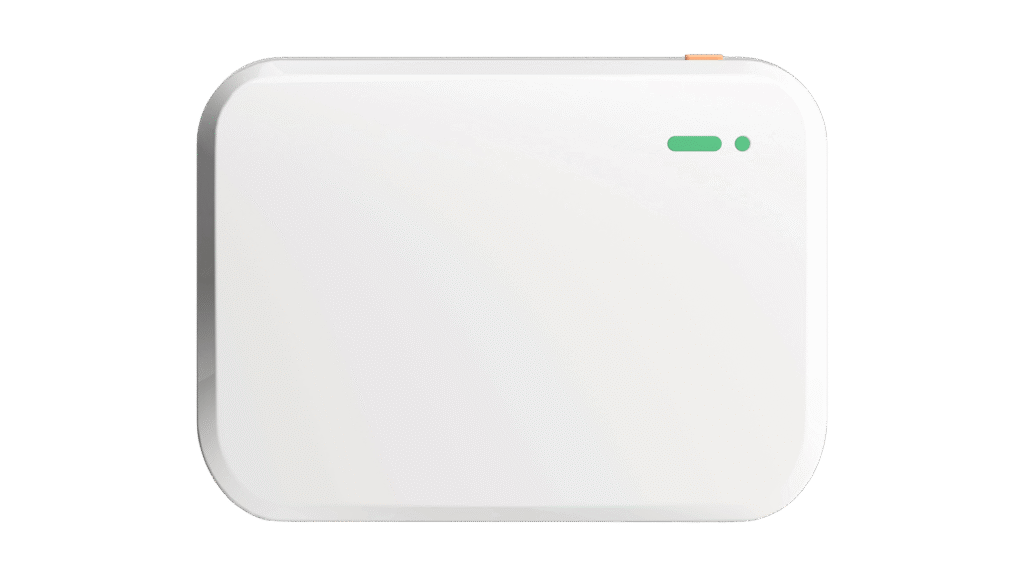

Minimal, sleek design that fits seamlessly anywhere

The Airsight Monitor features a compact, understated design that blends effortlessly into any environment, from offices and classrooms to warehouses and hotel lobbies. Its discreet appearance maintains your interior aesthetics while delivering accurate, real-time indoor air quality data, ensuring effective monitoring without distracting from your space.

Airsight Pro Monitor mounted on a wall in an office

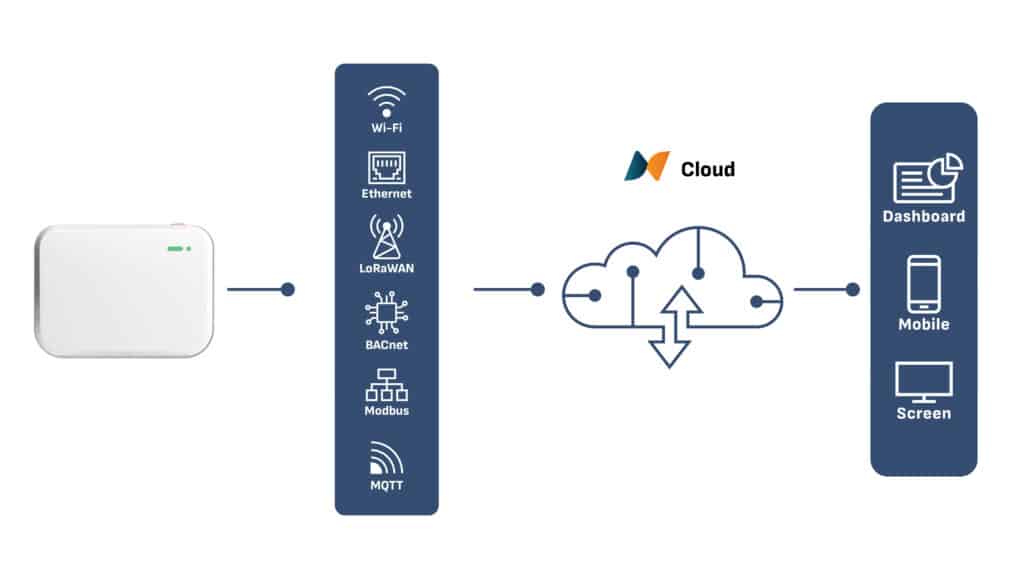

Multiple connectivity options for seamless integration

Connect the Airsight Pro Monitor over BACnet, Modbus, Ethernet, MQTT or API. It sends indoor air quality data to the Nomestic cloud for analysis and, at the same time, straight to your HVAC or building management system (BMS) for real-time control. It works with or without a BMS.

Icons of the connection options: BACnet, Modbus, Ethernet, SIM card, MQTT and API

Multiple power options for flexible installation

Power the Airsight Pro Monitor the way your building allows. Use PoE over the ethernet cable, a 24 V AC supply, 10 to 30 V DC wiring or a USB-C connection. With four options to choose from, you can install the monitor where it measures best, whether you are retrofitting an existing room or fitting out a new one.

Power options for the Airsight Pro Monitor: PoE, 24 V AC, 10 to 30 V DC and USB-C cables

Monitor multiple indoor air quality parameters in your indoor space

CO2
PM2.5
PM10
TVOC
NO2
CO
O3
Temperature
Humidity
Noise
Light
Air pressure

Specifications

Technical details

Connectivity

WiFi: 2.4 GHz (802.11 b/g/n) & 5.0 GHz
Wired: Ethernet
Building protocols: Modbus RTU/IP, BACnet RTU/IP
Other: MQTT, LoRaWAN, API

Data

Interval: 1 minute
Access: Dashboard, Mobile App, API, BAS/BMS Integration
Storage: In-built (up to 6 months), Cloud

Power supply

Port: USB-C
DC: 10-30V
AC: 24V
Over Ethernet: PoE

General

Installation type: Wall or Ceiling mount
Dimension: 150 (L) × 112 (W) × 32 mm (H)
Operating humidity: 10 to 90% RH (non-condensing)
Operating temperature: 0 to 50 °C
Weight: 235 g
Display: No
Buzzer alarm: Yes
Status indicator: Yes
Certifications: CE, FCC, RoHS, REACH

Sensor details

Sensor	Type	Range	Resolution	Accuracy
Temperature	Digital CMOSens	-40 to 125 °C	0.1 °C	±0.2 °C
Humidity	Digital CMOSens	0 to 100% RH	0.01% RH	±1.8% RH
Dust particles (PM2.5)	Light scattering	0 to 1000 μg/m³	1 μg/m³	0-100 μg: ±10 μg/m³, 100-1000 μg: ±10%
Dust particles (PM10)	Light scattering	0 to 1000 μg/m³	1 μg/m³	0-100 μg: ±10 μg/m³, 100-1000 μg: ±10%
Carbon dioxide (CO2)	NDIR	400 to 3000 ppm	1 ppm	±40 ppm ±3% reading
Chemicals (TVOC index)	MOx MEMS	0 to 500	1	≤ ±15
NOx index	MOx MEMS	0 to 500	1	≤ ±15
Light	Photodiode	1 to 83,000 lux	1 lux	±0.2%
Noise	Digital	36 to 95 dB	1 dB	±3 dB @ 23 ±5 °C
Air pressure	Piezoresistive absolute pressure sensor (MEMS)	300 to 1100 hPa	0.01 hPa	±1 hPa
Carbon monoxide (CO)	Micro fuel cell	0 to 1000 ppm	5 ppm	±5 ppm or ±10%
Nitrogen dioxide (NO2)	Solid polymer electrochemical	0 to 5 ppm	0.001 ppm	5% F.S
Ozone (O3)	Solid polymer electrochemical	0 to 5 ppm	0.001 ppm	5% F.S
